Configuring Google Single Sign-On Integration with SAML

Google offers a Single sign-on service as part of their Cloud Identity product, a unified identity platform for IAM (Identity and Access Management) and EMM (Enterprise Mobility Management). Google SSO provides single-click access to thousands of on-premises and in the cloud pre-integrated applications.

Using Security Assertion Markup Language (SAML), a user can use their managed account credentials to sign in to enterprise cloud applications via Single Sign-On (SSO). An Identity Provider (IdP) service provides administrators with a single place to manage all users and cloud applications.

You don't have to manage individual user IDs and passwords tied to individual cloud applications for each of your users. An IdP service provides your users with a unified sign-on across all their enterprise cloud applications.

Information

You have to use IdP-initiated SSO if you want to utilize Auto Provisioning.

If you will use SP-initiated SSO, please set the Name ID Format value to email address on the IdP side.

Single Sign-On Fields

This table lists and explains the Single Sign-On fields in the Google Single Sign-On window.

Field

Description

Enable

Select this option to enable the single sign-on feature.

Enforce to authenticate only with single sign-on

Enable this option so only administrator users can authenticate without single sign-on. Users can only sign in to Acunetix 360 by using the email address that belongs to their employer.

IdP Identifier

This is the SAML identity provider’s Identifier value.

SAML 2.0 Service URL

This is the Consumer URL value (also called the SSO Endpoint or Recipient URL).

SAML 2.0 Endpoint

This is the URL from your IdP's SSO Endpoint field.

X.509 Certificate

This is the X.509 certificate value.


How to Configure Google Single Sign-On Integration with SAML
  1. Log in to your Google account and navigate to the Admin console.
  2. Select Apps > Web and mobile apps.
  3. From the Web and mobile apps page, select Add app drop-down, then Add custom SAML app.
  4. On the Add custom SAML app page, enter a friendly name for your app. (For this illustration, we use Invicti.)
  5. Select Continue.
  6. Take note of the IdP Information: SSO URL, Entity ID, and certificate. (You will need them in a later step.)
  7. In IDP metadata, select Download Metadata.
  8. Select Continue.

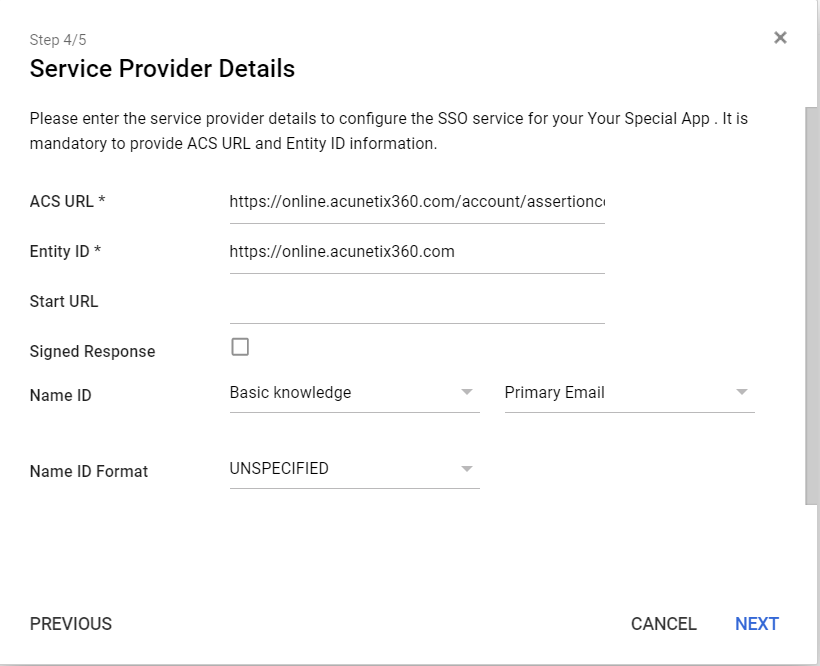

  1. In the ACS URL field, copy and paste the contents of the SAML 2.0 Service URL field from Invicti Enterprise's Single Sign-On page.
  2. In the Entity ID field, copy and paste the contents of the Identifier field (URL) from the Acunetix 360 SSO configuration page.
  3. Select Continue.

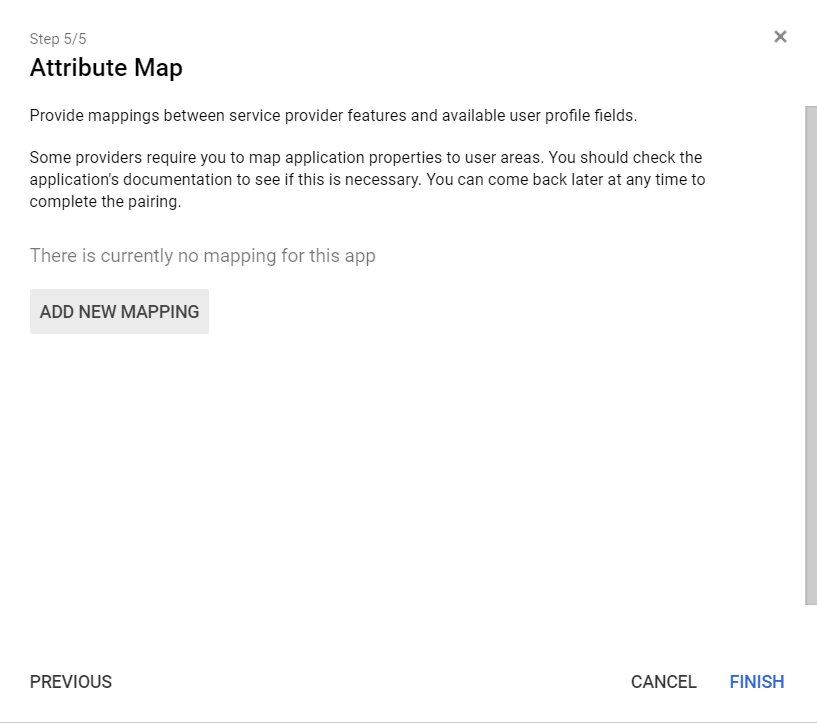

  1. Configure the Attribute Mapping based on your needs.
  2. Select Finish.
  3. Return to the SAML Settings page.
  4. Click the ellipsis () for More Options, then select ON for everyone.
  5. In the IdP Information note panel:
  • Copy the URL from the Entity ID field.

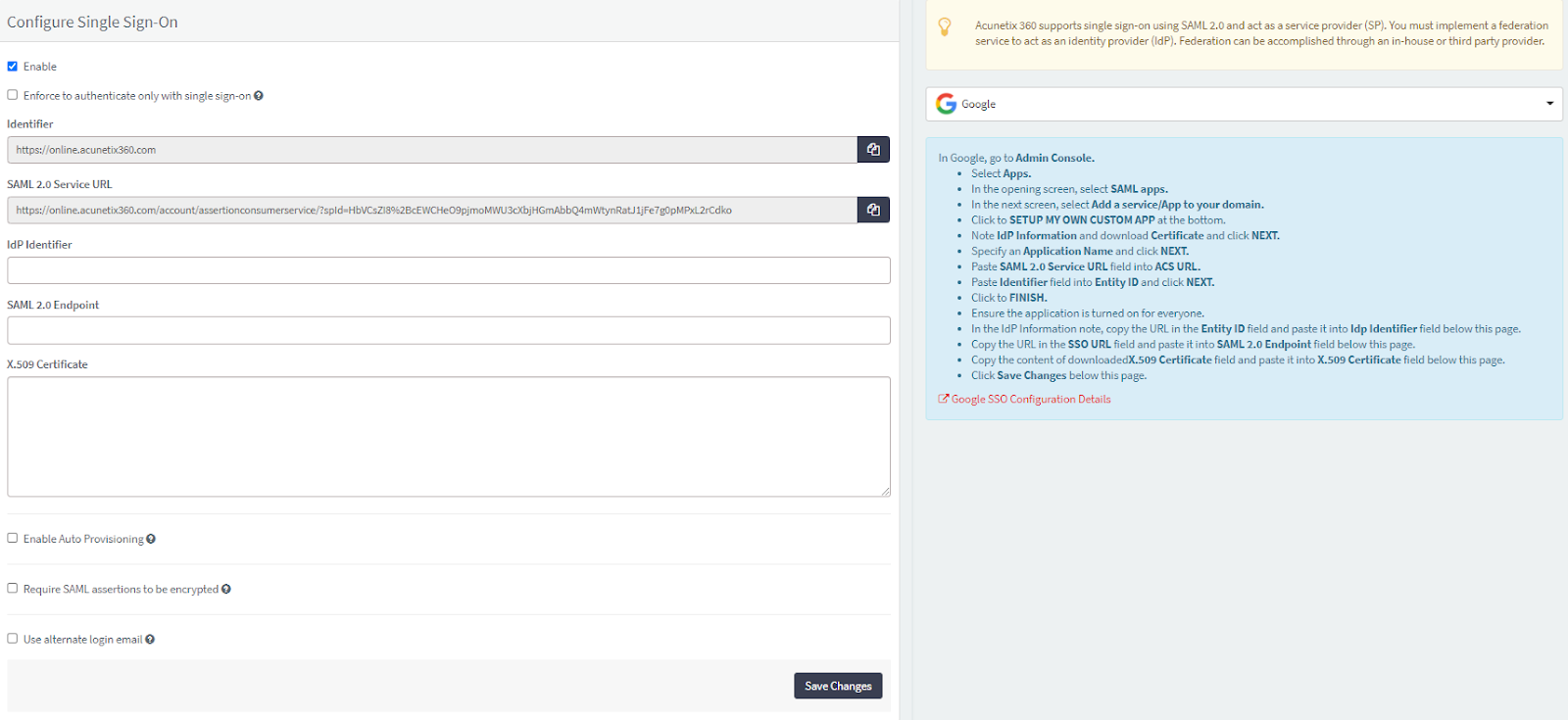

  • Then log in to Acunetix 360, and from the main menu, click Settings, then Single Sign-On. Select Google from the drop-down list and paste the URL into the Idp Identifier field.
  • Next, copy the URL from the SSO URL field.
  • Then in Acunetix 360’s Single Sign-On window, paste the URL into the SAML 2.0 Endpoint field.
  • Finally, copy the content from the downloaded X.509 Certificate field.
  • Then in Acunetix 360’s Single Sign-On window, paste it into the X.509 Certificate field.

  1. On Acunetix 360’s Single Sign-On page, select one or all of the following options, if necessary:

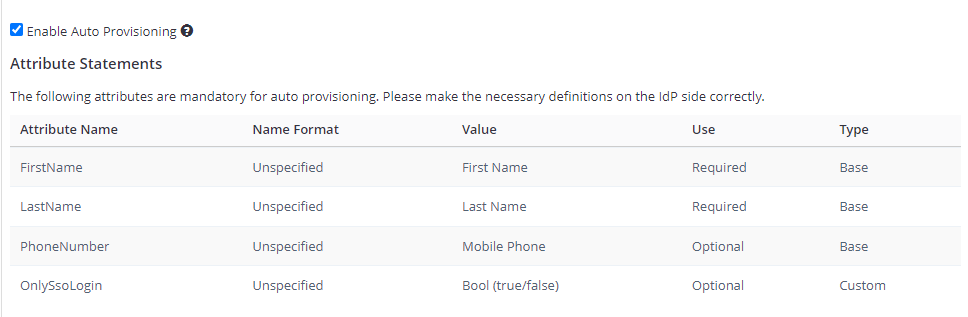

  • Enable Auto Provisioning: If enabled, an account will be automatically created for IdP-registered users when they first access Acunetix 360. To do so, you must complete the FirstName, LastName, and Phone Number (optional) fields in the Attribute Statements on the IdP side. For further information about OnlySsoLogin, see Provisioning a member.

  • Require SAML assertions to be encrypted: If enabled, it prevents third parties from reading private data in transit from assertions. There are two options:
  • Generate a new certificate for me: Acunetix 360 generates a key pair. Acunetix 360 will keep a private key to decrypt received SAML messages and provide you with a certificate so that you can upload it on the IdP side.
  • I have an existing certificate: You need to upload your certificate to Acunetix 360 by importing a decryption certificate from your files.
  • Use Alternate Login Email: If enabled, this lets users use alternative email for SSO. So, you can enter an alternative email on the New Member Invitation page and while editing the user's details on the Team page.
  1. Select Save Changes.

For further information, see the Google document.
